SLR: Permutation test for the slope

Announcements

• HW 01 due Tuesday, January 27 at 11:59pm

• Labs resume Monday (stayed tuned for any weather related updates)

Topics

• Describe accuracy versus precision for confidence intervals

• Evaluate a claim about the slope using hypothesis testing

• Construct a null distribution using simulation

• Compute a p-value and use it to draw conclusions

Computational setup

# load packages
library(tidyverse)   # for data wrangling and visualization
library(tidymodels)  # for modeling
library(usdata)      # for the county_2019 dataset
library(openintro)   # for Duke Forest dataset
library(scales)      # for pretty axis labels
library(glue)        # for constructing character strings
library(knitr)       # for neatly formatted tables
library(kableExtra)  # also for neatly formatted tablesf


# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_bw(base_size = 16))

Recap of last lecture

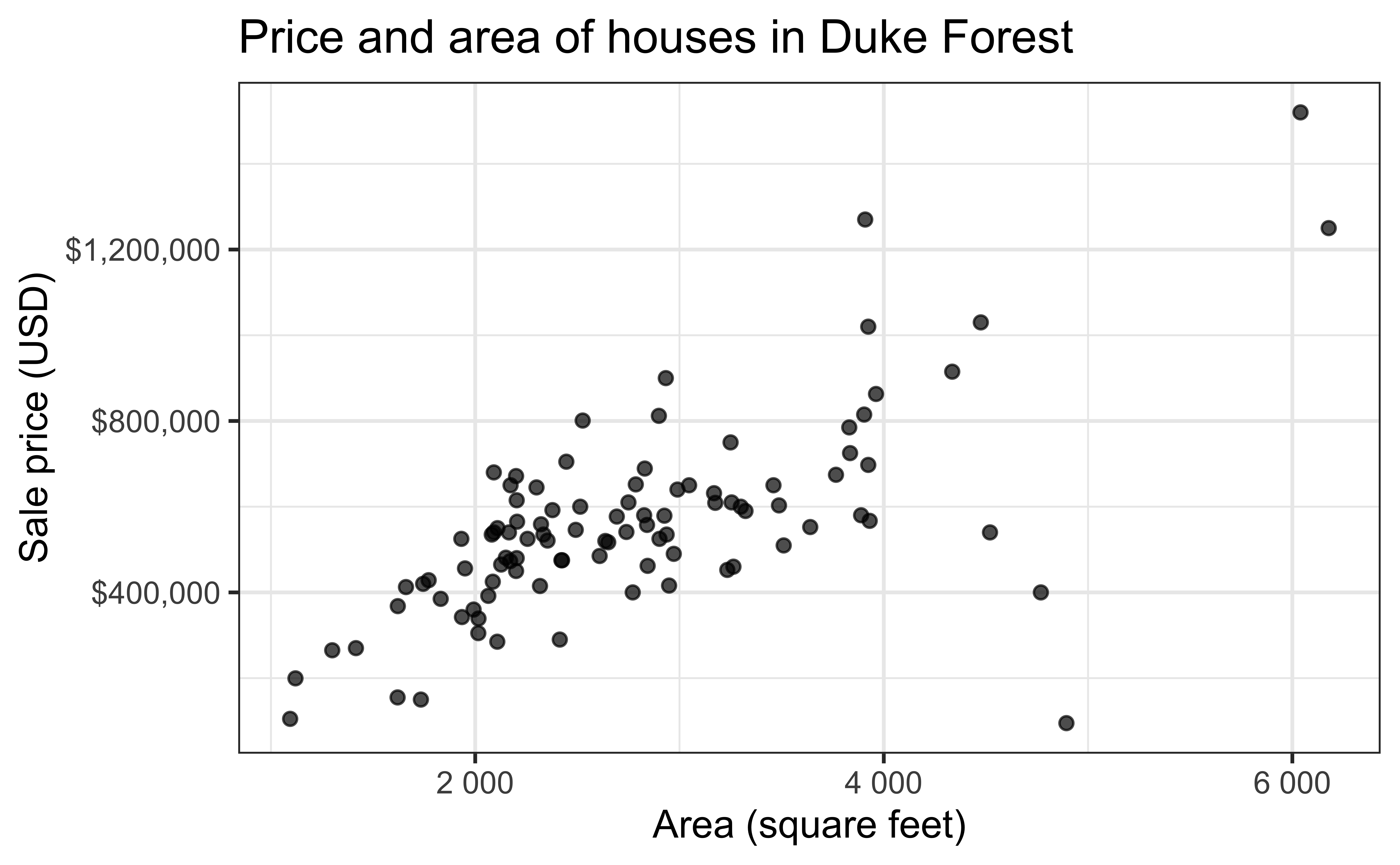

Data: Duke Forest houses

The regression model

df_fit <- lm(price ~ area, data = duke_forest)

tidy(df_fit) |>
  kable(digits = 2)

term	estimate	std.error	statistic	p.value
(Intercept)	116652.33	53302.46	2.19	0.03
area	159.48	18.17	8.78	0.00

. . .

Slope: For each additional square foot, we expect the sale price of Duke Forest houses to be higher by $159, on average.

Inference for simple linear regression

• Calculate a confidence interval for the slope, \(\beta_1\)

• Conduct a hypothesis test for the slope, \(\beta_1\)

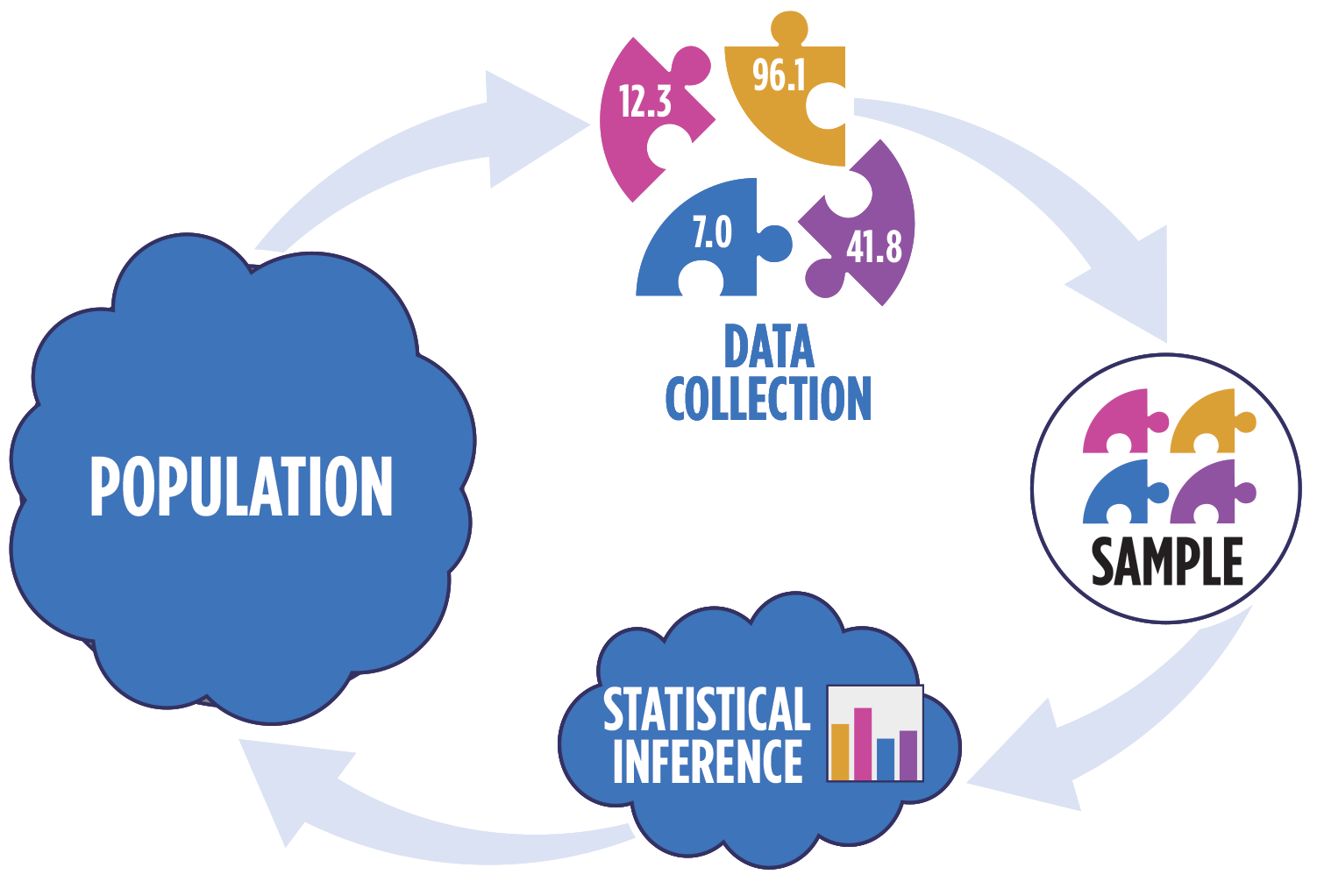

Statistical inference

Image source: Eugene Morgan © Penn State

Sampling is natural

• When you taste a spoonful of soup and decide the spoonful you tasted isn’t salty enough, that’s exploratory analysis
• If you generalize and conclude that your entire soup needs salt, that’s an inference
• For your inference to be valid, the spoonful you tasted (the sample) needs to be representative of the entire pot (the population)

Confidence interval via bootstrapping

• Bootstrap new samples from the original sample
• Fit models to each of the samples and estimate the slope
• Use features of the distribution of the bootstrapped slopes to construct a confidence interval

Bootstrapping pipeline I

set.seed(210)

duke_forest |>
  specify(price ~ area)

Response: price (numeric)
Explanatory: area (numeric)
# A tibble: 98 × 2
     price  area
     <dbl> <dbl>
 1 1520000  6040
 2 1030000  4475
 3  420000  1745
 4  680000  2091
 5  428500  1772
 6  456000  1950
 7 1270000  3909
 8  557450  2841
 9  697500  3924
10  650000  2173
# ℹ 88 more rows

Bootstrapping pipeline II

set.seed(210)

duke_forest |>
  specify(price ~ area) |>
  generate(reps = 1000, type = "bootstrap")

Response: price (numeric)
Explanatory: area (numeric)
# A tibble: 98,000 × 3
# Groups:   replicate [1,000]
   replicate   price  area
       <int>   <dbl> <dbl>
 1         1  290000  2414
 2         1  285000  2108
 3         1  265000  1300
 4         1  416000  2949
 5         1  541000  2740
 6         1  525000  2256
 7         1 1270000  3909
 8         1  265000  1300
 9         1  815000  3904
10         1  535000  2937
# ℹ 97,990 more rows

Bootstrapping pipeline III

set.seed(210)

duke_forest |>
  specify(price ~ area) |>
  generate(reps = 1000, type = "bootstrap") |>
  fit()

# A tibble: 2,000 × 3
# Groups:   replicate [1,000]
   replicate term      estimate
       <int> <chr>        <dbl>
 1         1 intercept   80699.
 2         1 area          168.
 3         2 intercept  -18821.
 4         2 area          205.
 5         3 intercept  234297.
 6         3 area          117.
 7         4 intercept  134481.
 8         4 area          150.
 9         5 intercept   23861.
10         5 area          190.
# ℹ 1,990 more rows

Bootstrapping pipeline IV

set.seed(210)

boot_dist <- duke_forest |>
  specify(price ~ area) |>
  generate(reps = 1000, type = "bootstrap") |>
  fit()

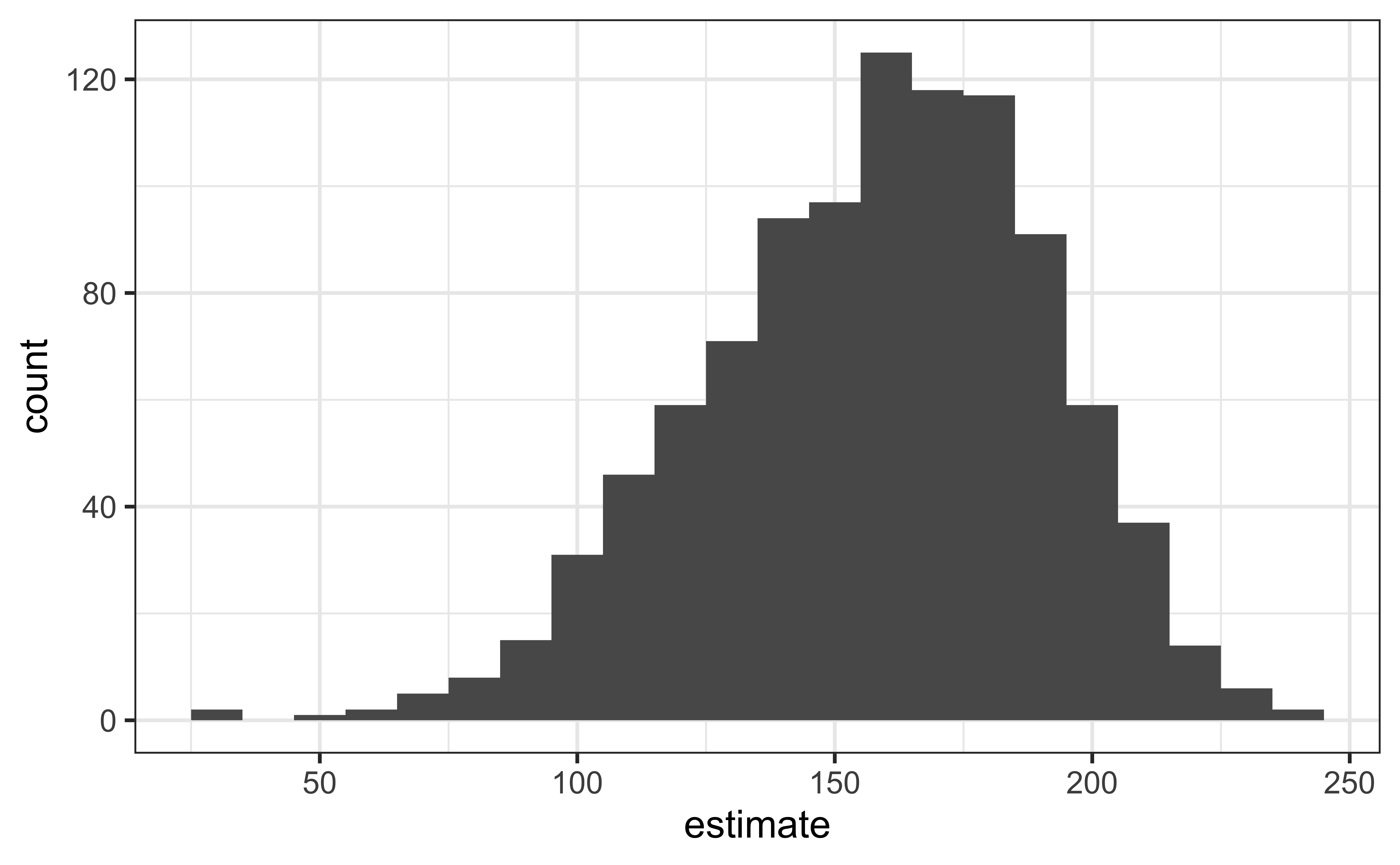

Visualize the bootstrap distribution

boot_dist |>
  filter(term == "area") |>
  ggplot(aes(x = estimate)) +
  geom_histogram(binwidth = 10)

Compute the CI

But first…

obs_fit <- duke_forest |>
  specify(price ~ area) |>
  fit()

obs_fit

# A tibble: 2 × 2
  term      estimate
  <chr>        <dbl>
1 intercept  116652.
2 area          159.

Compute 95% confidence interval

boot_dist |>
  get_confidence_interval(
    point_estimate = obs_fit,
    level = 0.95,
    type = "percentile"
  )

# A tibble: 2 × 3
  term      lower_ci upper_ci
  <chr>        <dbl>    <dbl>
1 area          91.7     211.
2 intercept -18290.   287711.

Precision vs. accuracy

If we want to be very certain that we capture the population parameter, should we use a wider or a narrower interval? What drawbacks are associated with using a wider interval?

. . .

Precision vs. accuracy

How can we get best of both worlds – high precision and high accuracy?

. . .

Consider a 90%, 95%, and 99% confidence interval.

• Which interval is most precise?
• Which is most accurate?

Changing confidence level

## confidence level: 90%
get_confidence_interval(
  boot_fits, point_estimate = obs_fit,
  level = 0.90, type = "percentile"
)

# A tibble: 2 × 3
  term      lower_ci upper_ci
  <chr>        <dbl>    <dbl>
1 area          102.     206.
2 intercept    5288.  264931.

## confidence level: 99%
get_confidence_interval(
  boot_fits, point_estimate = obs_fit,
  level = 0.99, type = "percentile"
)

# A tibble: 2 × 3
  term      lower_ci upper_ci
  <chr>        <dbl>    <dbl>
1 area          65.4     229.
2 intercept -47594.   362644.

Hypothesis test for the slope

Research question and hypotheses

“Do the data provide sufficient evidence that \(\beta_1\) (the true population slope) is different from 0?”

. . .

Null hypothesis: there is no linear relationship between area and price

\[ H_0: \beta_1 = 0 \]

. . .

Alternative hypothesis: there is a linear relationship between area and price

\[ H_a: \beta_1 \ne 0 \]

Hypothesis testing as a US court trial

• Null hypothesis, \(H_0\): Defendant is innocent
• Alternative hypothesis, \(H_a\): Defendant is guilty
• Present the evidence: Collect data
• Judge the evidence: “Could these data plausibly have happened by chance if the null hypothesis were true?”

  • Yes: Fail to reject \(H_0\)

  • No: Reject \(H_0\)

Hypothesis testing framework

• Start with a null hypothesis, \(H_0\) that represents the status quo
• Set an alternative hypothesis, \(H_a\) that represents the research question, i.e. claim we’re testing
• Conduct a hypothesis test under the assumption that the null hypothesis is true and calculate a p-value (probability of getting the observed or a more extreme outcome given that the null hypothesis is true)
  • if the test results suggest that the data do not provide convincing evidence for the alternative hypothesis, stick with the null hypothesis
  • if they do, then reject the null hypothesis in favor of the alternative

Quantify the variability of the slope

for testing

• Two approaches:
  1. Via simulation
  2. Via mathematical models
• Use Permutation to quantify the variability of the slope for the purpose of testing, under the assumption that the null hypothesis is true:
  • Simulate new samples from the original sample via permutation
  • Fit models to each of the samples and estimate the slope
  • Use features of the distribution of the permuted slopes to conduct a hypothesis test

Permutation, described

• Use permuting to simulate data under the assumption the null hypothesis is true and measure the natural variability in the data due to sampling, not due to variables being correlated
  • Permute one variable to eliminate any existing relationship between the variables
• Each price value is randomly assigned to the area of a given house, i.e. area and price are no longer matched for a given house

# A tibble: 98 × 3
   price_Observed price_Permuted  area
            <dbl>          <dbl> <dbl>
 1        1520000         342500  6040
 2        1030000         750000  4475
 3         420000         645000  1745
 4         680000         697500  2091
 5         428500         428500  1772
 6         456000         481000  1950
 7        1270000         610000  3909
 8         557450         680000  2841
 9         697500         485000  3924
10         650000         105000  2173
# ℹ 88 more rows

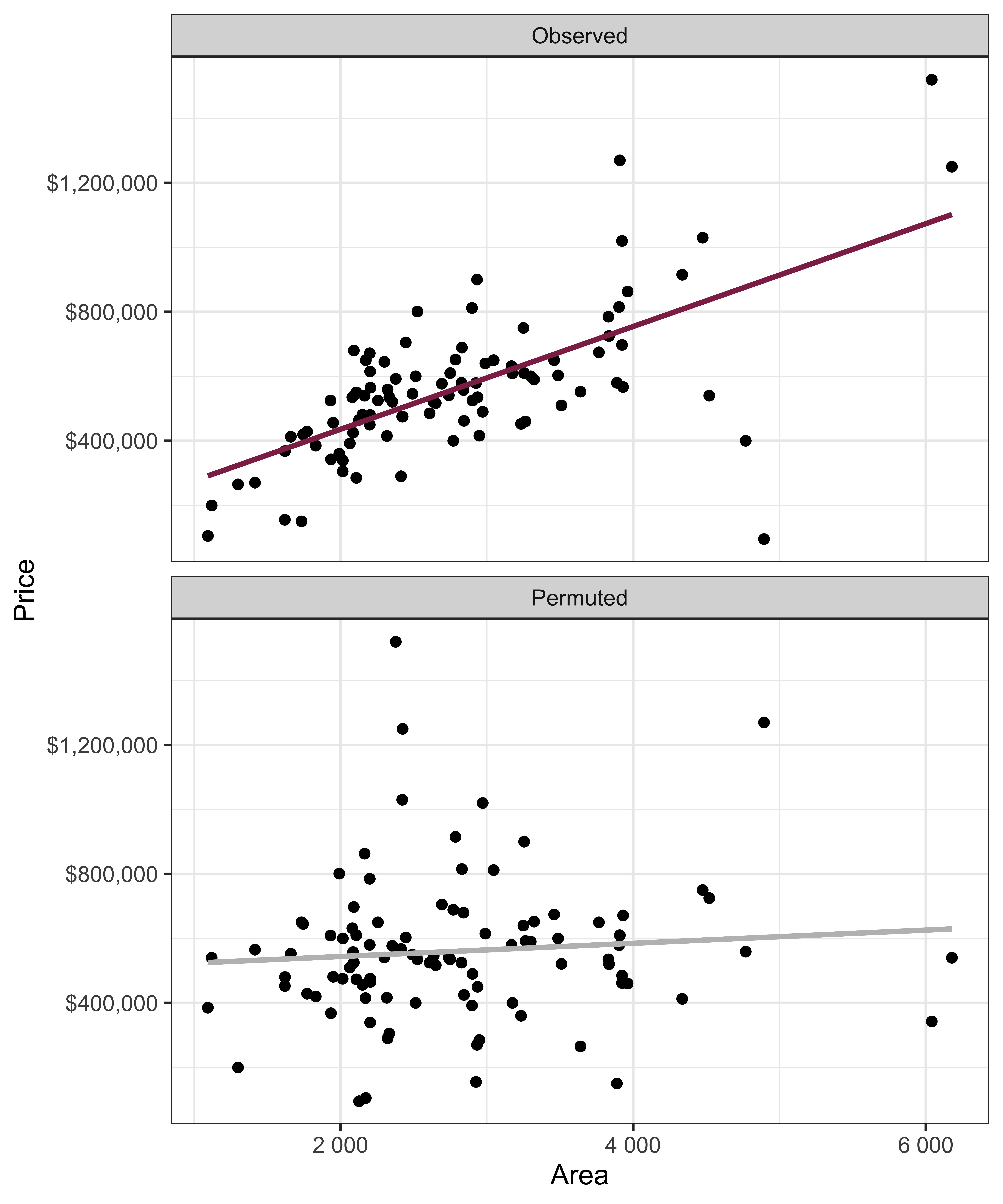

Permutation, visualized

• Each of the observed values for area (and for price) exist in both the observed data plot as well as the permuted price plot
• The permutation removes the relationship between area and price

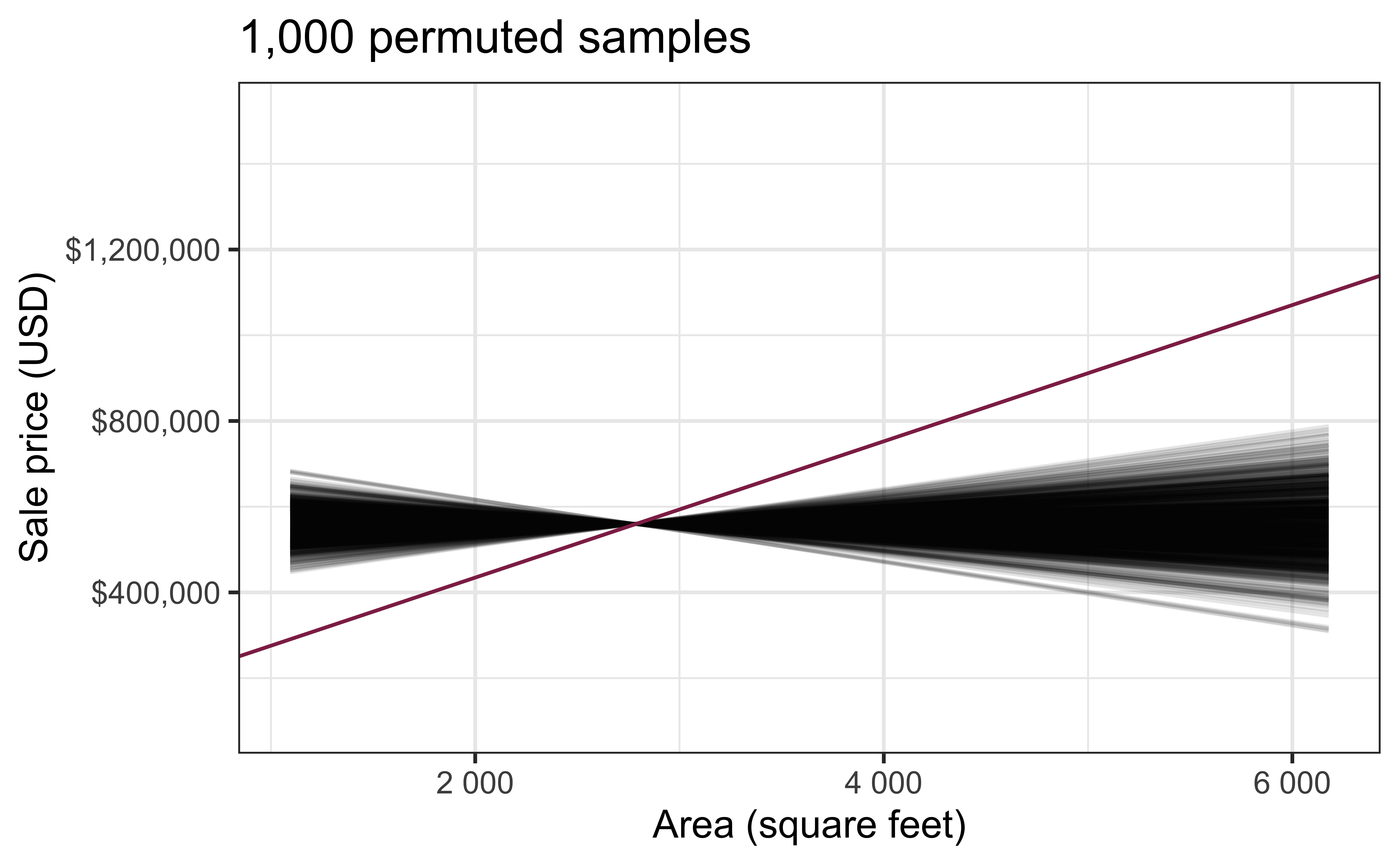

Permutation, repeated

Repeated permutations allow for quantifying the variability in the slope under the condition that there is no linear relationship (i.e., that the null hypothesis is true)

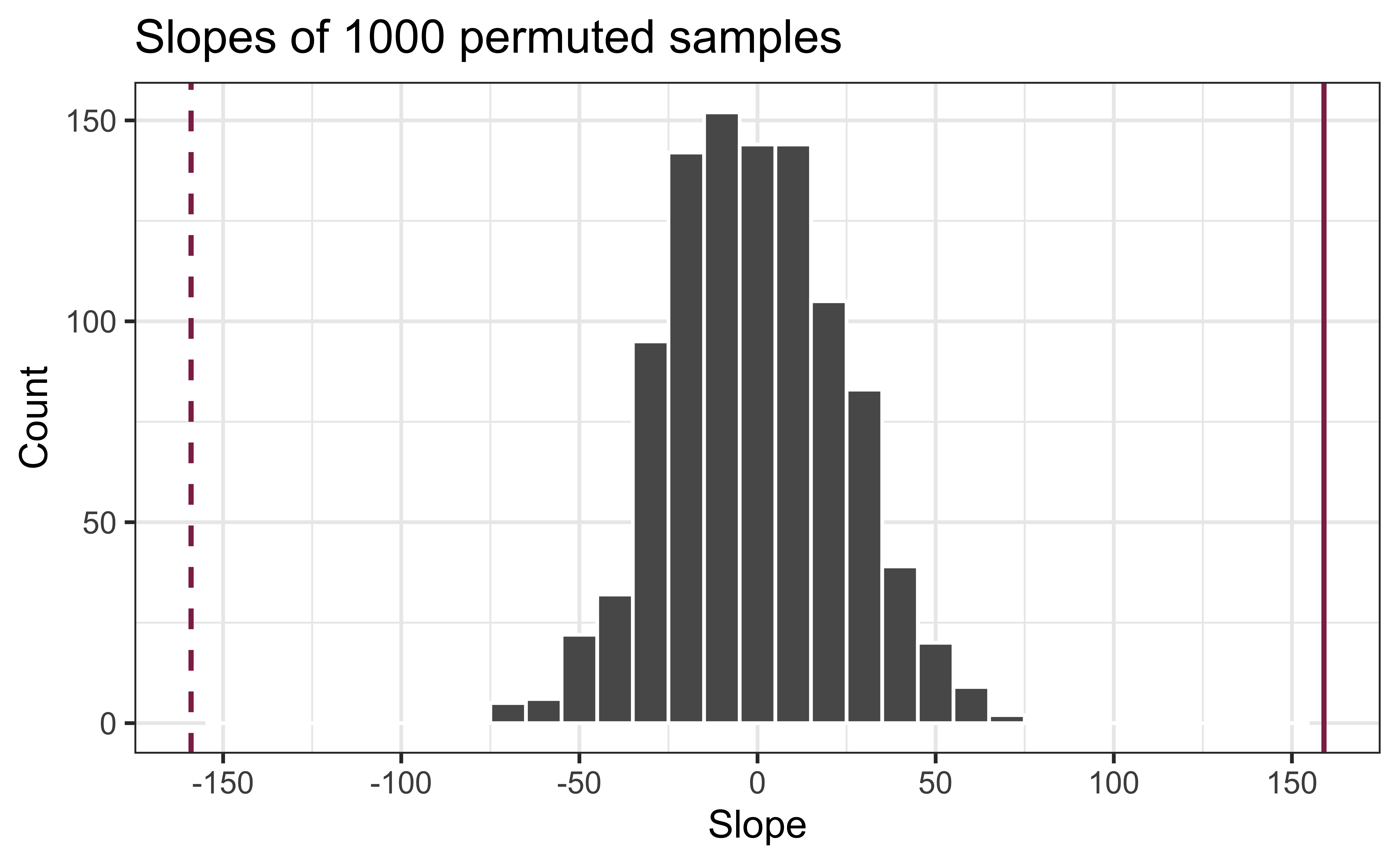

Concluding the hypothesis test

Is the observed slope of \(\hat{\beta_1} = 159\) (or an even more extreme slope) a likely outcome under the null hypothesis that \(\beta = 0\)? What does this mean for our original question: “Do the data provide sufficient evidence that \(\beta_1\) (the true slope for the population) is different from 0?”

Permutation pipeline I

set.seed(210)

duke_forest |>
  specify(price ~ area)

Response: price (numeric)
Explanatory: area (numeric)
# A tibble: 98 × 2
     price  area
     <dbl> <dbl>
 1 1520000  6040
 2 1030000  4475
 3  420000  1745
 4  680000  2091
 5  428500  1772
 6  456000  1950
 7 1270000  3909
 8  557450  2841
 9  697500  3924
10  650000  2173
# ℹ 88 more rows

Permutation pipeline II

set.seed(210)

duke_forest |>
  specify(price ~ area) |>
  hypothesize(null = "independence")

Response: price (numeric)
Explanatory: area (numeric)
Null Hypothesis: indepe...
# A tibble: 98 × 2
     price  area
     <dbl> <dbl>
 1 1520000  6040
 2 1030000  4475
 3  420000  1745
 4  680000  2091
 5  428500  1772
 6  456000  1950
 7 1270000  3909
 8  557450  2841
 9  697500  3924
10  650000  2173
# ℹ 88 more rows

Permutation pipeline III

set.seed(210)

duke_forest |>
  specify(price ~ area) |>
  hypothesize(null = "independence") |>
  generate(reps = 1000, type = "permute")

Response: price (numeric)
Explanatory: area (numeric)
Null Hypothesis: indepe...
# A tibble: 98,000 × 3
# Groups:   replicate [1,000]
     price  area replicate
     <dbl> <dbl>     <int>
 1  290000  6040         1
 2  285000  4475         1
 3  265000  1745         1
 4  416000  2091         1
 5  541000  1772         1
 6  525000  1950         1
 7 1270000  3909         1
 8  490000  2841         1
 9  535000  3924         1
10  481000  2173         1
# ℹ 97,990 more rows

Permutation pipeline IV

set.seed(210)

duke_forest |>
  specify(price ~ area) |>
  hypothesize(null = "independence") |>
  generate(reps = 1000, type = "permute") |>
  fit()

# A tibble: 2,000 × 3
# Groups:   replicate [1,000]
   replicate term        estimate
       <int> <chr>          <dbl>
 1         1 intercept 560741.
 2         1 area          -0.303
 3         2 intercept 531330.
 4         2 area          10.3
 5         3 intercept 533014.
 6         3 area           9.67
 7         4 intercept 388765.
 8         4 area          61.6
 9         5 intercept 607389.
10         5 area         -17.1
# ℹ 1,990 more rows

Permutation pipeline V

set.seed(210)

null_dist <- duke_forest |>
  specify(price ~ area) |>
  hypothesize(null = "independence") |>
  generate(reps = 1000, type = "permute") |>
  fit()

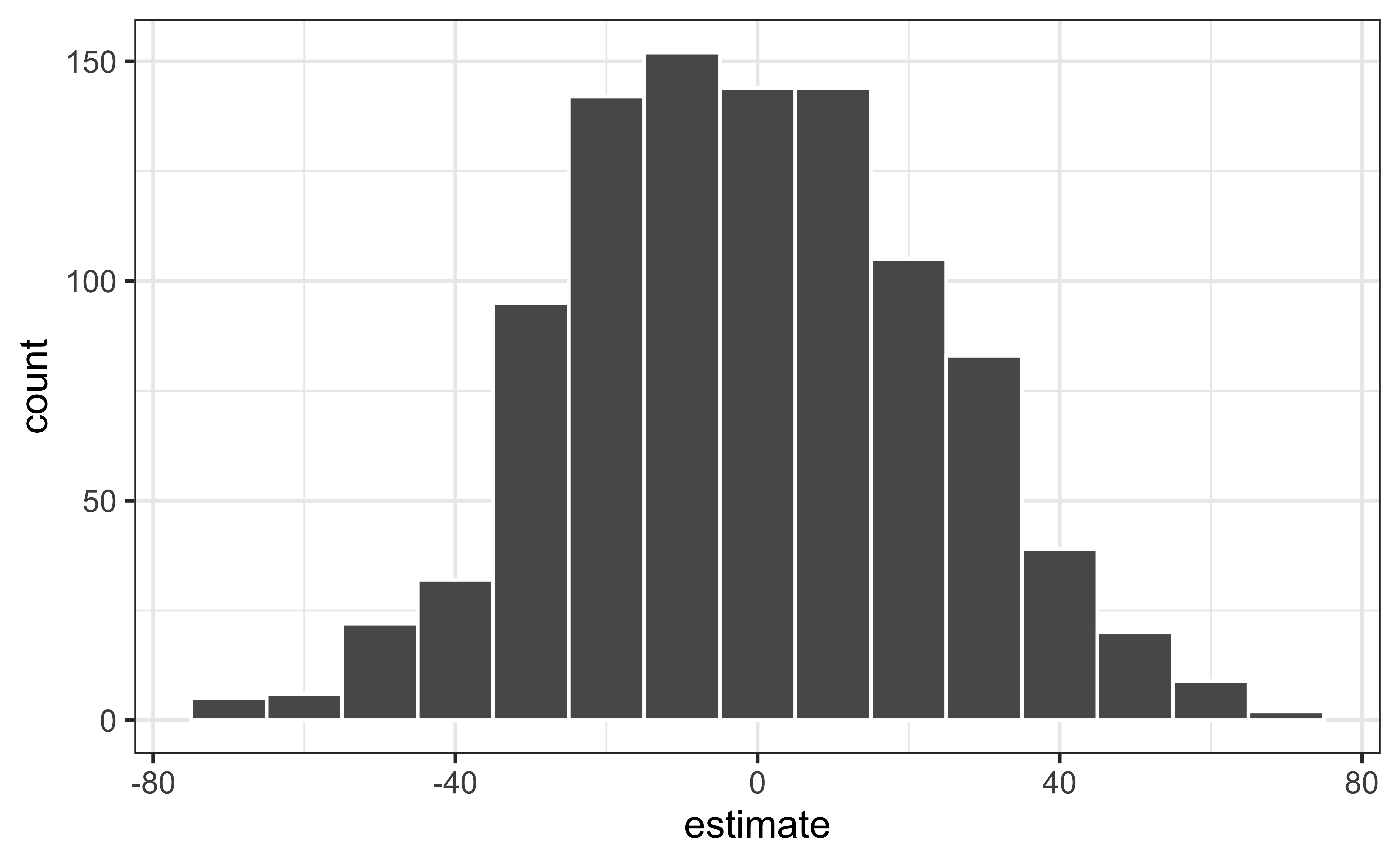

Visualize the null distribution

null_dist |>
  filter(term == "area") |>
  ggplot(aes(x = estimate)) +
  geom_histogram(binwidth = 10, color = "white")

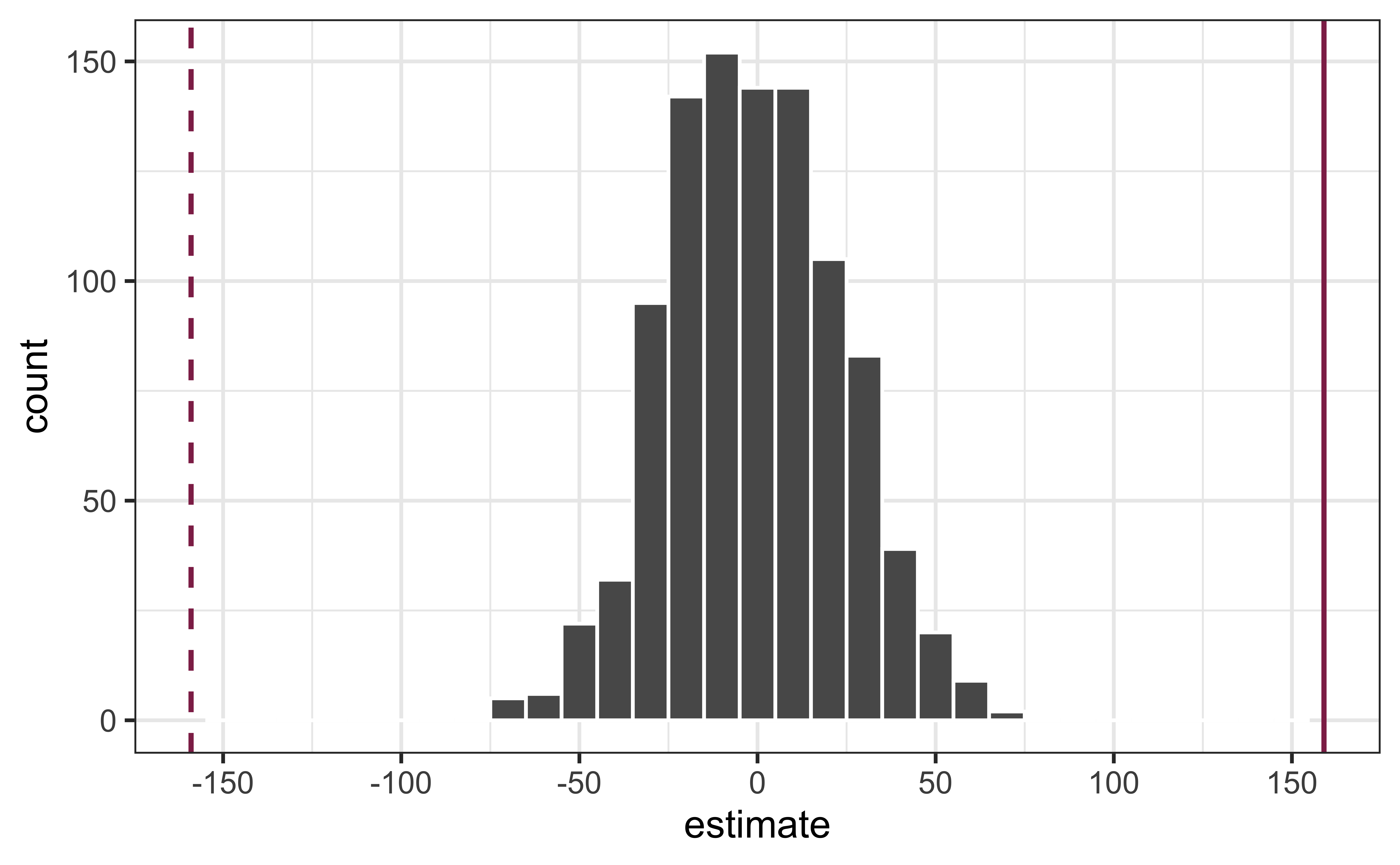

Reason around the p-value

In a world where the there is no relationship between the area of a Duke Forest house and in its price (\(\beta_1 = 0\)), what is the probability that we observe a sample of 98 houses where the slope fo the model predicting price from area is 159 or even more extreme?

Compute the p-value

What does this warning mean?

get_p_value(
  null_dist,
  obs_stat = obs_fit,
  direction = "two-sided"
)

Warning: Please be cautious in reporting a p-value of 0. This result is an approximation
based on the number of `reps` chosen in the `generate()` step.
ℹ See `get_p_value()` (`?infer::get_p_value()`) for more information.
Please be cautious in reporting a p-value of 0. This result is an approximation
based on the number of `reps` chosen in the `generate()` step.
ℹ See `get_p_value()` (`?infer::get_p_value()`) for more information.

# A tibble: 2 × 2
  term      p_value
  <chr>       <dbl>
1 area            0
2 intercept       0

p-value warning

Question

What does the warning from R mean?

🔗 https://forms.office.com/r/Ji4YKVRwSj

Submit

Application exercise

📋 https://sta210-sp26.github.io/ae/ae-05-sim-testing.html

• Find ae-05 repo on GitHub

Recap

• Described accuracy versus precision for confidence intervals

• Evaluated a claim about the slope using hypothesis testing

• Constructed a null distribution using simulation

• Computed a p-value and use it to draw conclusions

For next class

• Inference using mathematical models

• Complete Lecture 06 prepare
